Prestressed Concrete Steel Strand / Pre-stressed steel strands

PC STEEL STRAND / LRPC STRAND / PT CABLE / POST-TENSIONED STEEL CABLE/
HIGH TENSILE LOW RELAXATION STEEL STRAND FOR PRESTRESSED CONCRETE

Specification:
Raw Material: High carbon steel wire rod SWRH 77B SWRH 82B

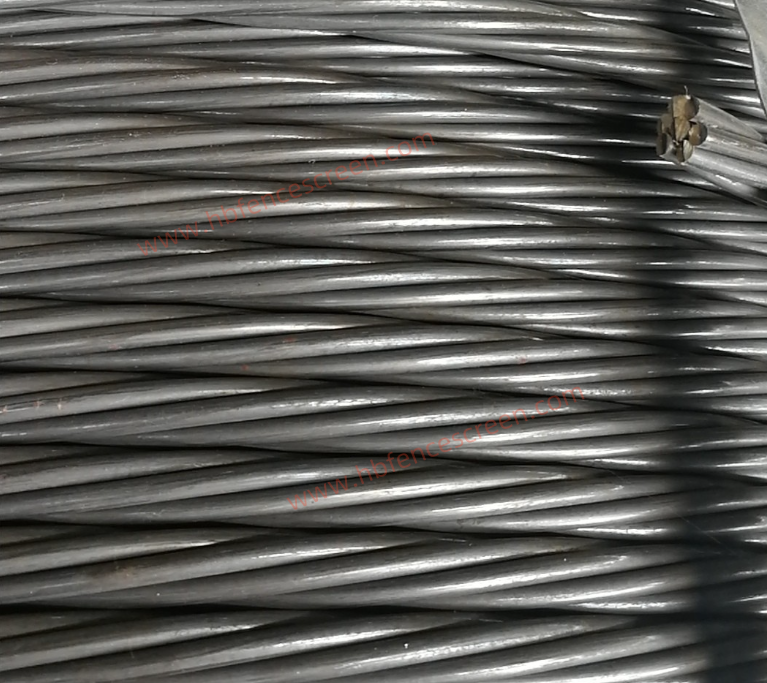

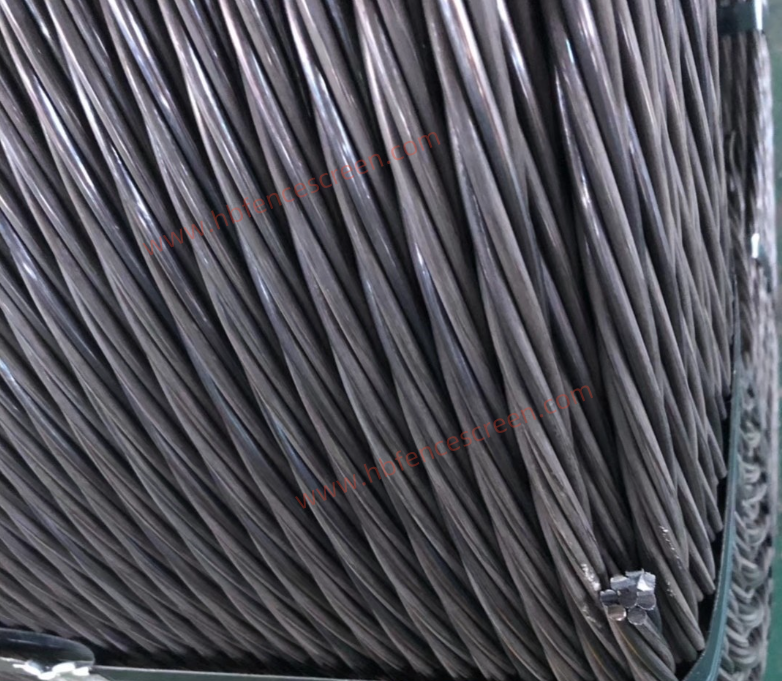

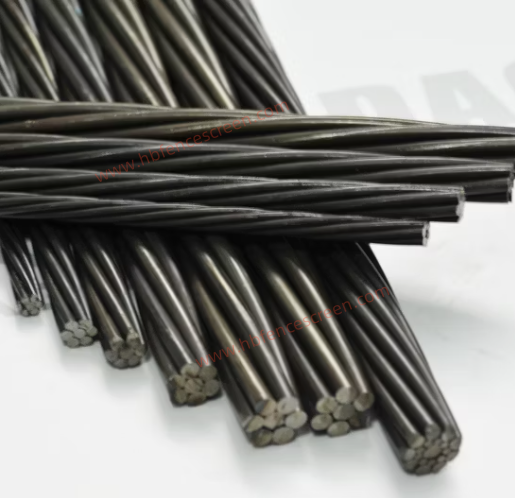

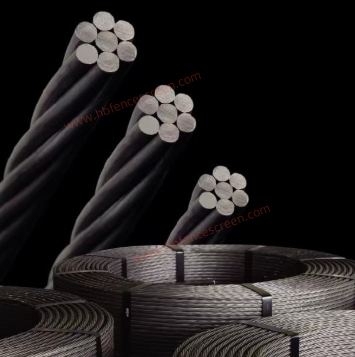

Structure: 7 wires, Nominal Diameter: 9.30, 9.53, 11.11, 12.50, 12.70, 12.90, 15.24, 15.70, 17.80, 18.90, 21.60mm;
Structure: 19 wires, Nominal Diameter: 21.8mm, 28.6mm
Standards: ASTM A416-2017, ASTM A779-2016, ASTM A886-2017, ASTM A910-2016, ASTM A475-03 (2014), AASHTO M 203-2007, ABNT NBR 7483-2020, AS 1311-1987, AS/NZS 4672.1-2017, BS5896-2012, EN10138-3-2009, GB/T5224-2014, IS6006-2014, JISG3536-2014, KSD7002-2019, UNE36094-1997, NEN3868-2001, SNI 1154-2011
Categories: smooth plain, hot dipped galvanized, HDPE coated, epoxy resin coated.
Tensile Strength: 1770-1860-1960MPa, Yield Strength 1570-1670-1770MPa
Relaxation: Initial load to 70% breaking load, the relaxation at 1000 hours less than 2.5%
Elongation: Lo over 610mm, the elongation over 4.0%

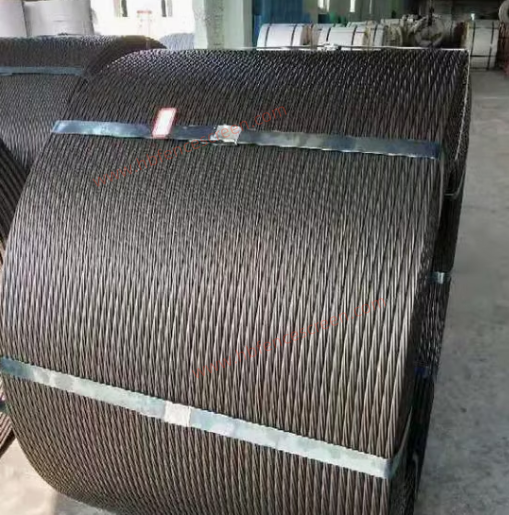

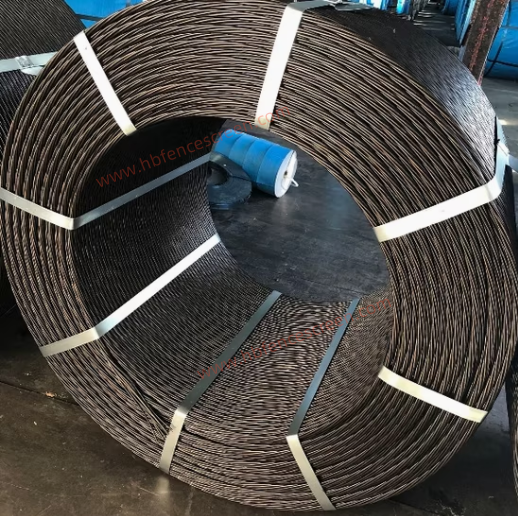

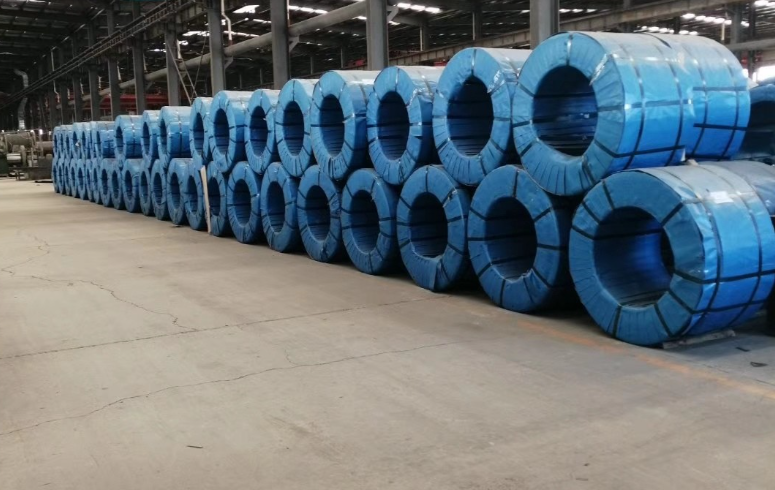

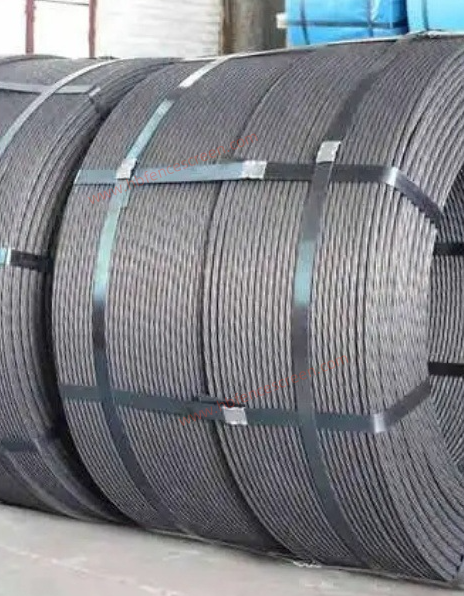

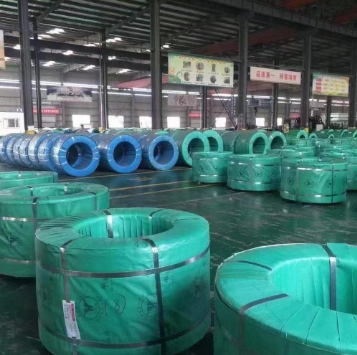

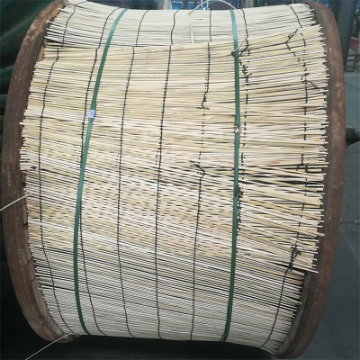

Packing Method: baling strip, inner PVC film, outer damp-proof paper-plastic compound packing cloth, wood pallet.
Package Roll Weight: 2-3 MT / 3-4 MT

Usages:

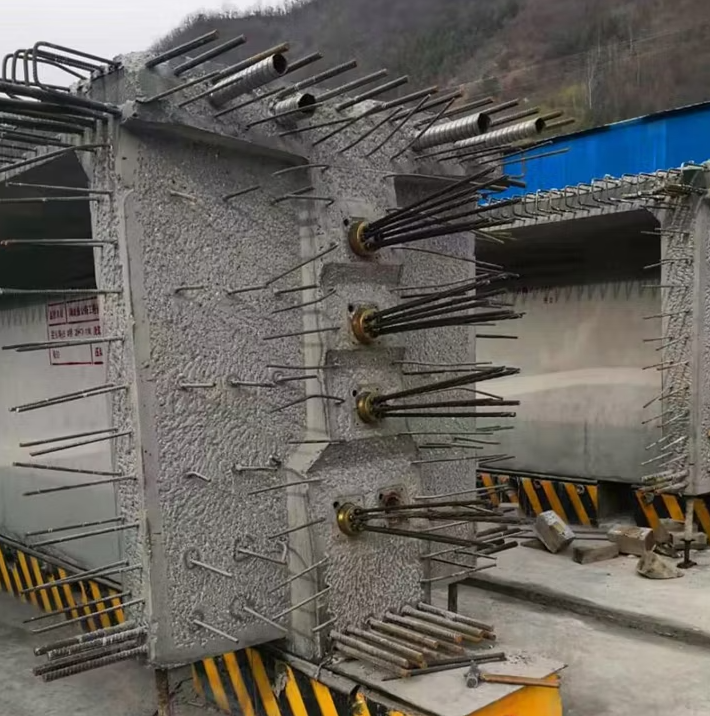

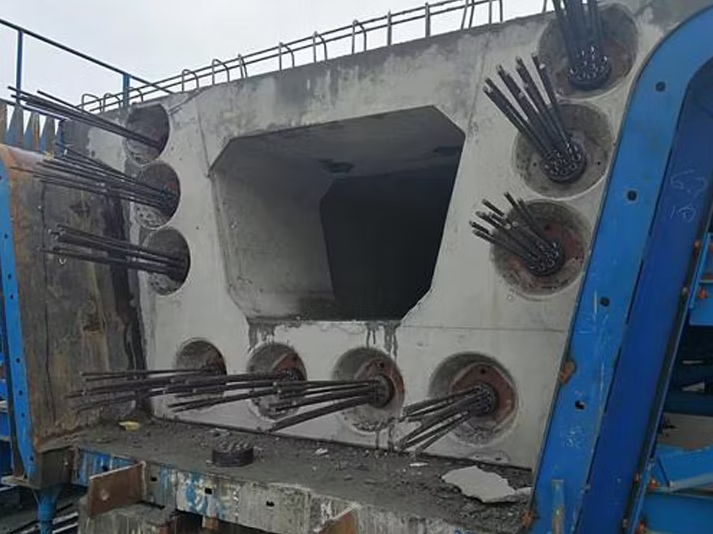

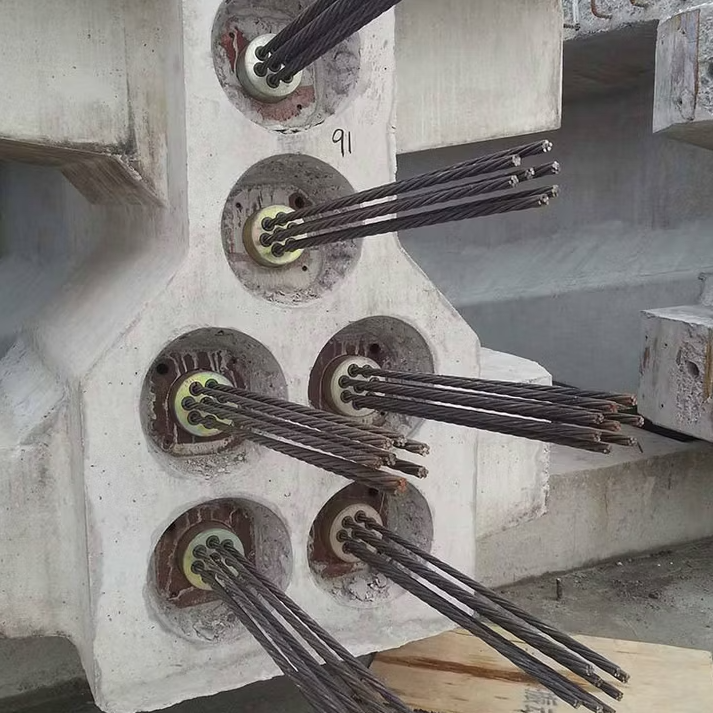

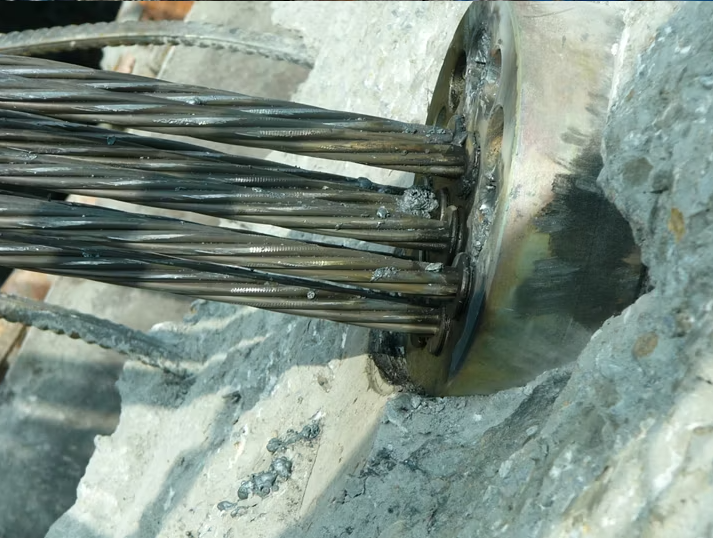

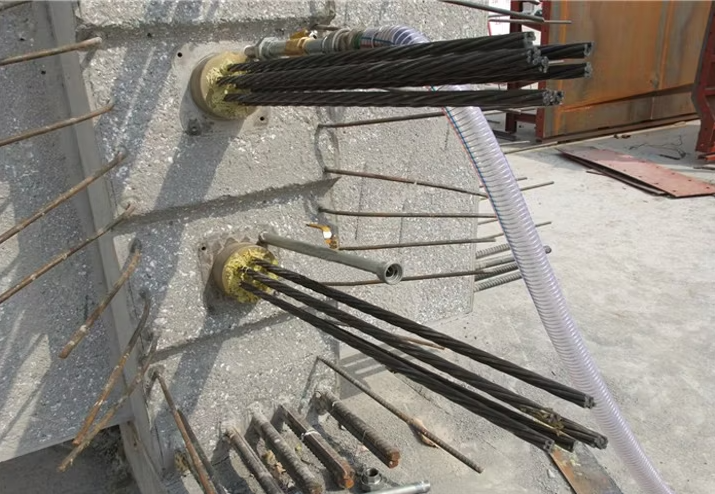

Pre-stressing steels apply to post-tensioned and pre-tensioned concrete structure in the follow civil engineering, building construction and infrastructure projects: bridges; railway sleeper, subway track board; airport; industrial buildings, commercial buildings, residential housing foundations; PC poles, piles, beams, girders, slabs, double-T board, hollow floor board, floor, parking decks, PHC, PPCP; electric power, nuclear power station; ports, dams, water project, sewage treatment, swimming pool; rock-coil anchoring, side slope stabilization, coil mine; storage tank for national gas, oil, grain; stadiums, TV tower etc.

History:
With excellent quality, reasonable price and good after-sales service, Jiangjing Brand has been China Top Ten PC Strand Brand for 6 years. Jiangjing products had been used in many national key projects in China and exported to many countries, such as Australia, Bahrain, Bangladesh, Brazil, Chile, Colombia, Dominica, Ecuador, Egypt, India, Iran, Kenya, Lebanon, Malaysia, Panama, Qatar, South Korea, Sri Lanka, Thailand, Venezuela, Viet Nam etc.

Trade Terms:
Min Order Qty: 1 FCL / 27 M.Tons
Price Terms: EXW FOB FCA CFR CIF
Payment Terms: Cash, TT, LC, DP
Date of Shipment: 10-20 days
